Application
Press technology, general Machine tool industry, Paper industry, Conveyor and lifting technology, Plastic and rubber injection technology, Energy-efficient speed-controllable servo drives.
Description
The EIPH and EIPS2-S111 series were developed especially for use in industry and its rigorous demands on hydraulics. The pumps in this series are the result of our decades of experience in the development of internal gear systems. They feature especially low-noise operation, excellent levels of efficiency and long service lives at high pressures.
Shaft Key

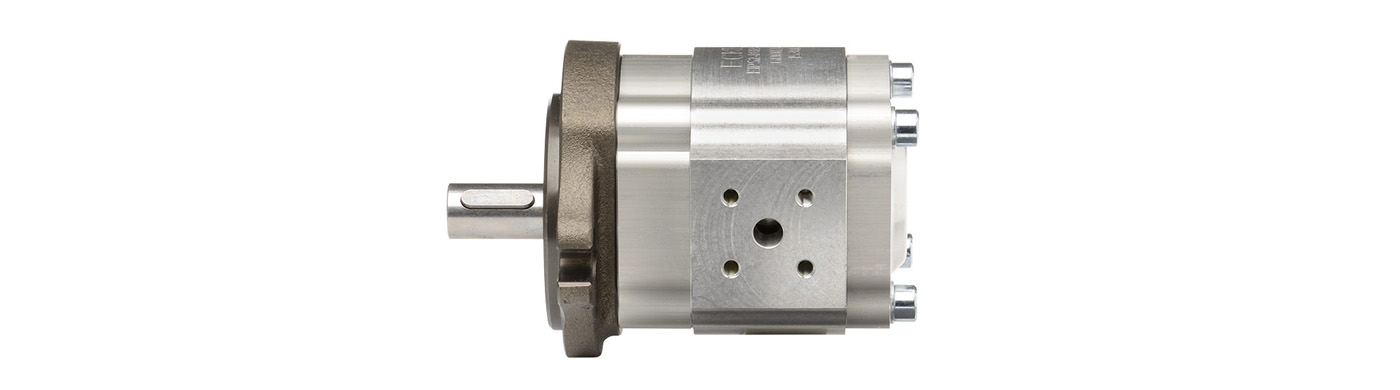

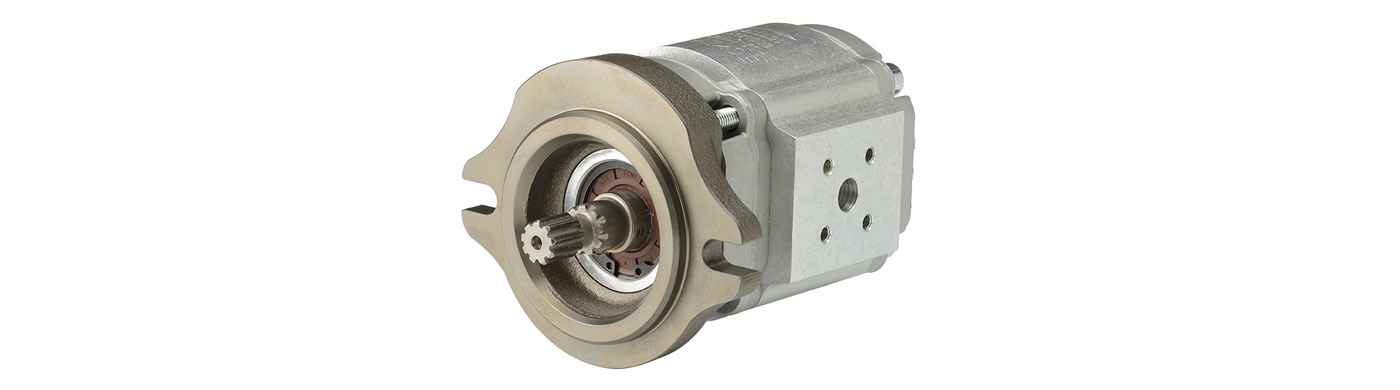

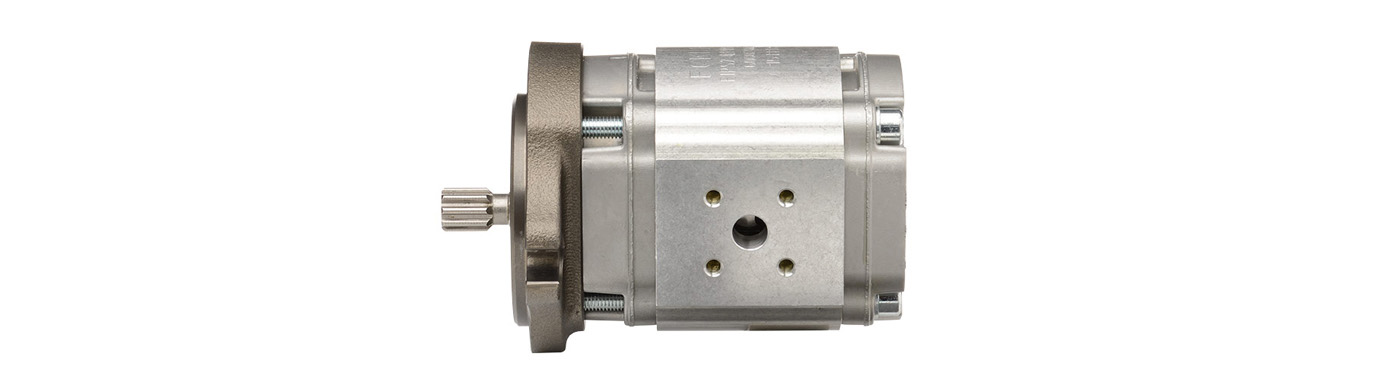

There are two type of shaft keys, they are cylinderal (RA) and geared (RB)
| Pump volume (l/min) at 1,500 rpm | 7.5 | ||||||||||
| Nominal size | 5 | ||||||||||
| Vth - specific volume (cm³/rev) | 5.4 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4200 | ||||||||||
| Order Number | 6000200071 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 9 | ||||||||||
| Nominal size | 6 | ||||||||||
| Vth - specific volume (cm³/rev) | 6.4 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4200 | ||||||||||
| Order Number | 6000200072 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 12 | ||||||||||
| Nominal size | 8 | ||||||||||
| Vth - specific volume (cm³/rev) | 7.9 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4200 | ||||||||||
| Order Number | 6000200073 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 16.5 | ||||||||||
| Nominal size | 11 | ||||||||||
| Vth - specific volume (cm³/rev) | 10.9 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4200 | ||||||||||
| Order Number | 6000200074 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 19.5 | ||||||||||
| Nominal size | 13 | ||||||||||
| Vth - specific volume (cm³/rev) | 13.3 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4000 | ||||||||||
| Order Number | 6000200075 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 24 | ||||||||||
| Nominal size | 16 | ||||||||||
| Vth - specific volume (cm³/rev) | 15.8 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 4000 | ||||||||||
| Order Number | 6000200076 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 28.5 | ||||||||||
| Nominal size | 19 | ||||||||||
| Vth - specific volume (cm³/rev) | 19.3 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200077 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 33 | ||||||||||
| Nominal size | 22 | ||||||||||
| Vth - specific volume (cm³/rev) | 22.5 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200078 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 37.5 | ||||||||||
| Nominal size | 25 | ||||||||||
| Vth - specific volume (cm³/rev) | 25.2 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | cylindrical | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200079 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 24 | ||||||||||
| Nominal size | 16 | ||||||||||
| Vth - specific volume (cm³/rev) | 15.8 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | Geared | ||||||||||
| Max. speed (rpm) | 4000 | ||||||||||
| Order Number | 6000200407 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 28.5 | ||||||||||
| Nominal size | 19 | ||||||||||
| Vth - specific volume (cm³/rev) | 19.3 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | Geared | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200408 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 33 | ||||||||||
| Nominal size | 22 | ||||||||||
| Vth - specific volume (cm³/rev) | 22.5 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | Geared | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200410 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 37.5 | ||||||||||
| Nominal size | 25 | ||||||||||
| Vth - specific volume (cm³/rev) | 25.2 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | Geared | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000200379 | ||||||||||
Contact and Download
|
|||||||||||
If you are looking for a customized pump, why don't give us a call? Let us help you ... |
|||||||||
