Application
Press technology, general Machine tool industry, Paper industry, Conveyor and lifting technology, Plastic and rubber injection technology, Energy-efficient speed-controllable servo drives.
Description
Eckerle has developed the EIPC industrial pump especially for use in injection moulding machine technology and for speed-regulated stationary hydraulic systems which are operated at constant pressures of up to 250 bar and where the cost factor plays an important role. Not only does it offer an excellent price/performance ratio, but also a long service life, low-noise operation and ease of combination to create multiple pumps. The Eckerle EIPC industrial pump can withstand high peak pressures of up to 320 bar.
Shaft Key

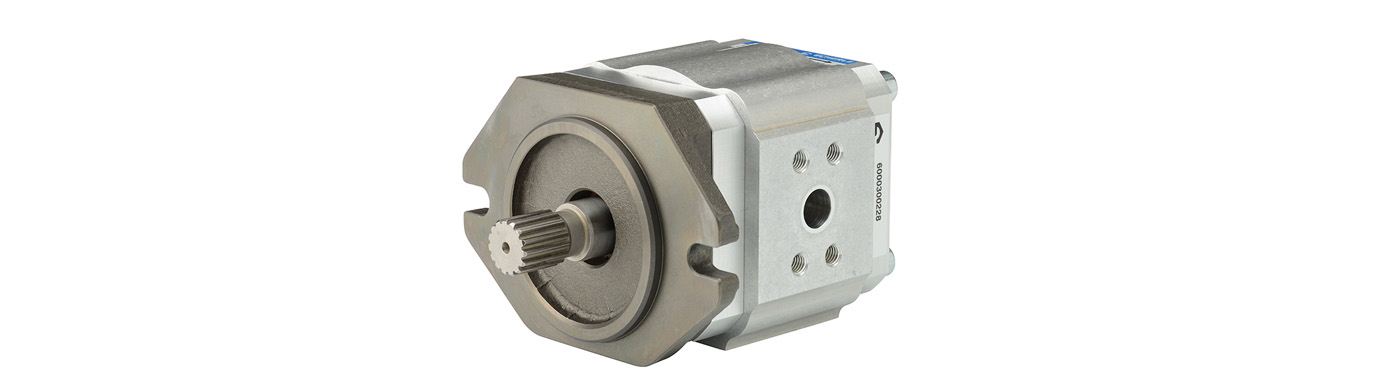

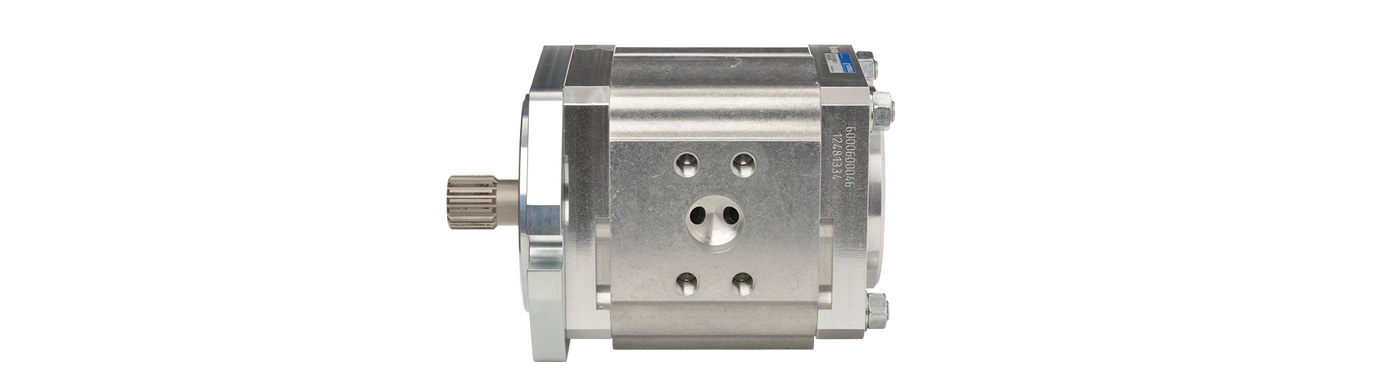

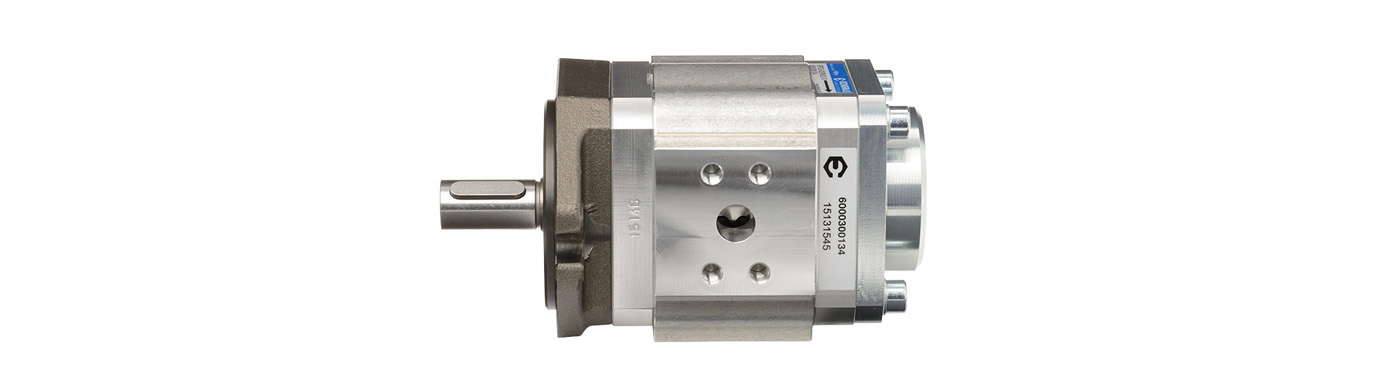

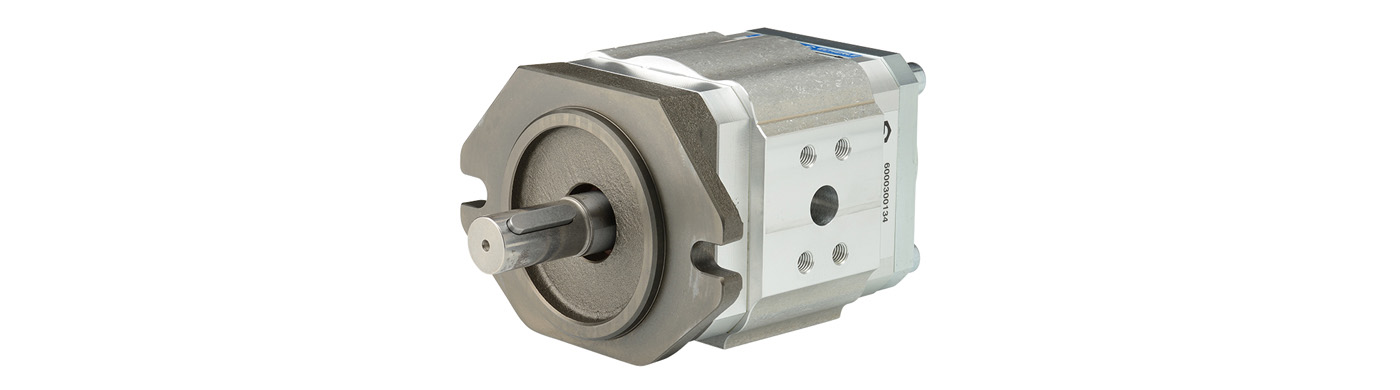

There are two type of shaft keys, they are cylinderal (RA) and geared (RB)
| Pump volume (l/min) at 1,500 rpm | 30 | ||||||||||
| Nominal size | 20 | ||||||||||
| Vth - specific volume (cm³/rev) | 20 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000300132 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 37.5 | ||||||||||
| Nominal size | 25 | ||||||||||
| Vth - specific volume (cm³/rev) | 24.8 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 3200 | ||||||||||
| Order Number | 6000200133 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 48 | ||||||||||
| Nominal size | 32 | ||||||||||
| Vth - specific volume (cm³/rev) | 32.1 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000200134 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 60 | ||||||||||
| Nominal size | 40 | ||||||||||
| Vth - specific volume (cm³/rev) | 40.1 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 320 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2500 | ||||||||||
| Order Number | 6000200135 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 75 | ||||||||||
| Nominal size | 50 | ||||||||||
| Vth - specific volume (cm³/rev) | 50.3 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 1800 | ||||||||||
| Order Number | 6000200136 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 96 | ||||||||||
| Nominal size | 64 | ||||||||||
| Vth - specific volume (cm³/rev) | 64.4 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 1800 | ||||||||||
| Order Number | 6000200132 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 96 | ||||||||||
| Nominal size | 64 | ||||||||||
| Vth - specific volume (cm³/rev) | 65.3 | ||||||||||
| Permanent operating pressure (bar) | 210 | ||||||||||
| Peak operating pressure (bar) | 230 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000500000 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 120 | ||||||||||
| Nominal size | 80 | ||||||||||
| Vth - specific volume (cm³/rev) | 80.4 | ||||||||||
| Permanent operating pressure (bar) | 210 | ||||||||||
| Peak operating pressure (bar) | 230 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000500001 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 150 | ||||||||||
| Nominal size | 100 | ||||||||||
| Vth - specific volume (cm³/rev) | 100.5 | ||||||||||
| Permanent operating pressure (bar) | 210 | ||||||||||
| Peak operating pressure (bar) | 230 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2500 | ||||||||||
| Order Number | 6000500002 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 187.5 | ||||||||||
| Nominal size | 125 | ||||||||||
| Vth - specific volume (cm³/rev) | 125.7 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2800 | ||||||||||
| Order Number | 6000500041 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 240 | ||||||||||
| Nominal size | 160 | ||||||||||
| Vth - specific volume (cm³/rev) | 160.1 | ||||||||||
| Permanent operating pressure (bar) | 250 | ||||||||||
| Peak operating pressure (bar) | 280 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500042 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 300 | ||||||||||
| Nominal size | 200 | ||||||||||
| Vth - specific volume (cm³/rev) | 200.9 | ||||||||||
| Permanent operating pressure (bar) | 160 | ||||||||||
| Peak operating pressure (bar) | 170 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500043 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 375 | ||||||||||
| Nominal size | 250 | ||||||||||
| Vth - specific volume (cm³/rev) | 249.9 | ||||||||||
| Permanent operating pressure (bar) | 140 | ||||||||||
| Peak operating pressure (bar) | 140 | ||||||||||
| Wave end | cylinderal | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500044 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 30 | ||||||||||
| Nominal size | 20 | ||||||||||
| Vth - specific volume (cm³/rev) | 20 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 320 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 3600 | ||||||||||
| Order Number | 6000300159 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 37.5 | ||||||||||
| Nominal size | 25 | ||||||||||
| Vth - specific volume (cm³/rev) | 24.8 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 320 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 3200 | ||||||||||
| Order Number | 6000200160 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 48 | ||||||||||
| Nominal size | 32 | ||||||||||
| Vth - specific volume (cm³/rev) | 32.1 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 320 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000200228 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 60 | ||||||||||
| Nominal size | 40 | ||||||||||
| Vth - specific volume (cm³/rev) | 40.1 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 320 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2500 | ||||||||||
| Order Number | 6000200229 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 75 | ||||||||||
| Nominal size | 50 | ||||||||||
| Vth - specific volume (cm³/rev) | 50.3 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 280 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 1800 | ||||||||||
| Order Number | 6000200230 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 96 | ||||||||||
| Nominal size | 64 | ||||||||||
| Vth - specific volume (cm³/rev) | 64.4 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 280 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 1800 | ||||||||||
| Order Number | 6000200231 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 96 | ||||||||||
| Nominal size | 64 | ||||||||||
| Vth - specific volume (cm³/rev) | 65.3 | ||||||||||
| Permanent operbting pressure (bar) | 210 | ||||||||||
| Peak operbting pressure (bar) | 230 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000500003 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 120 | ||||||||||
| Nominal size | 80 | ||||||||||
| Vth - specific volume (cm³/rev) | 80.4 | ||||||||||
| Permanent operbting pressure (bar) | 210 | ||||||||||
| Peak operbting pressure (bar) | 230 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 3000 | ||||||||||
| Order Number | 6000500004 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 150 | ||||||||||
| Nominal size | 100 | ||||||||||
| Vth - specific volume (cm³/rev) | 100.5 | ||||||||||
| Permanent operbting pressure (bar) | 210 | ||||||||||
| Peak operbting pressure (bar) | 230 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2500 | ||||||||||
| Order Number | 6000500005 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 187.5 | ||||||||||
| Nominal size | 125 | ||||||||||
| Vth - specific volume (cm³/rev) | 125.7 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 280 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2800 | ||||||||||
| Order Number | 6000500045 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 240 | ||||||||||
| Nominal size | 160 | ||||||||||
| Vth - specific volume (cm³/rev) | 160.1 | ||||||||||
| Permanent operbting pressure (bar) | 250 | ||||||||||
| Peak operbting pressure (bar) | 280 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500046 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 300 | ||||||||||
| Nominal size | 200 | ||||||||||
| Vth - specific volume (cm³/rev) | 200.9 | ||||||||||
| Permanent operbting pressure (bar) | 160 | ||||||||||
| Peak operbting pressure (bar) | 170 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500047 | ||||||||||
Contact and Download
|
|||||||||||
| Pump volume (l/min) at 1,500 rpm | 375 | ||||||||||
| Nominal size | 250 | ||||||||||
| Vth - specific volume (cm³/rev) | 249.9 | ||||||||||
| Permanent operbting pressure (bar) | 140 | ||||||||||
| Peak operbting pressure (bar) | 140 | ||||||||||
| Wave end | geared | ||||||||||
| Max. speed (rpm) | 2200 | ||||||||||
| Order Number | 6000500048 | ||||||||||
Contact and Download
|
|||||||||||
Should you are looking for a customized pump, why do give us a call? Let us help you ... |
|||||||||
