Application

  • Press technology
  • Marine engineering
  • Paper industry
  • Conveyor and lifting technology
  • Plastic and rubber injection moulding technology
  • Energy-efficient speed-controllable servo drives
  • Power plant technology
  • Wind power plants
  • Brake ventilator (for container gantries, cranes, lifts

Description

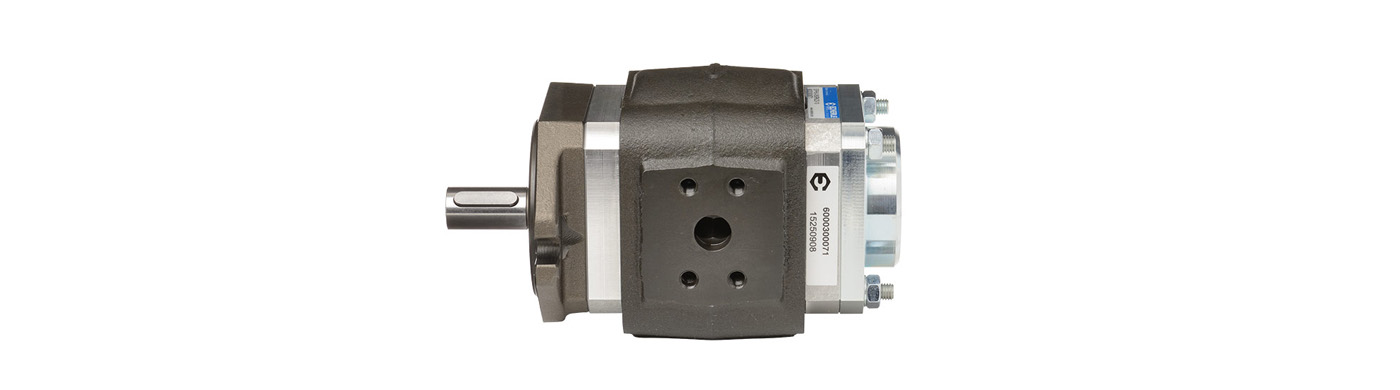

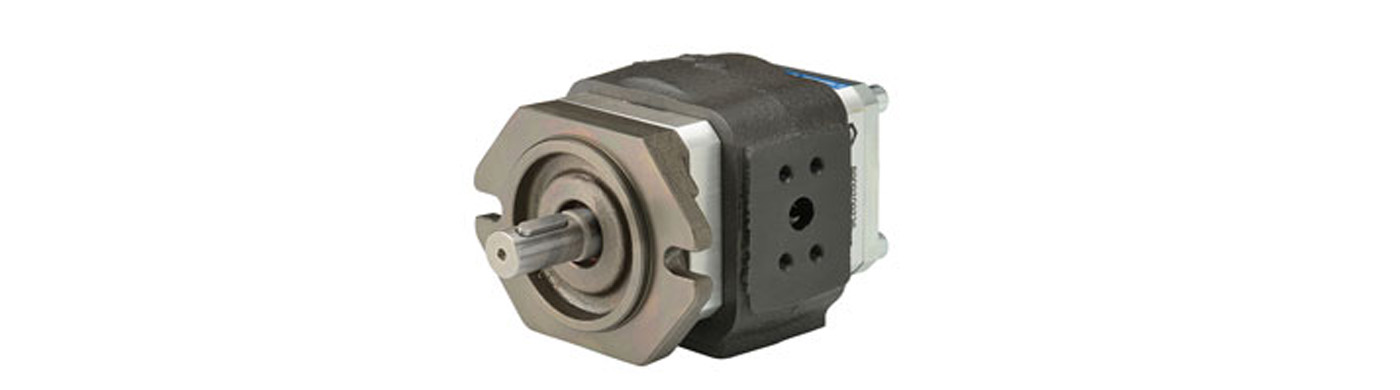

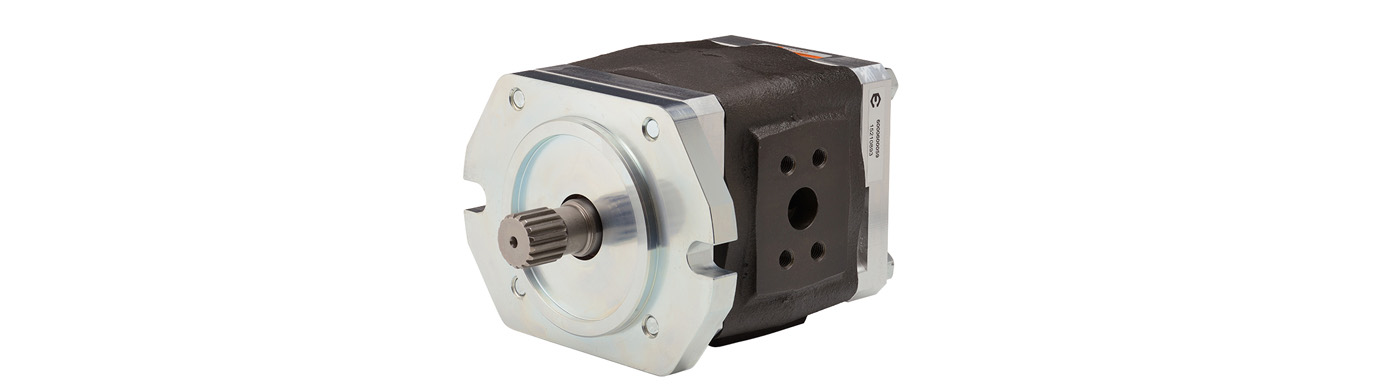

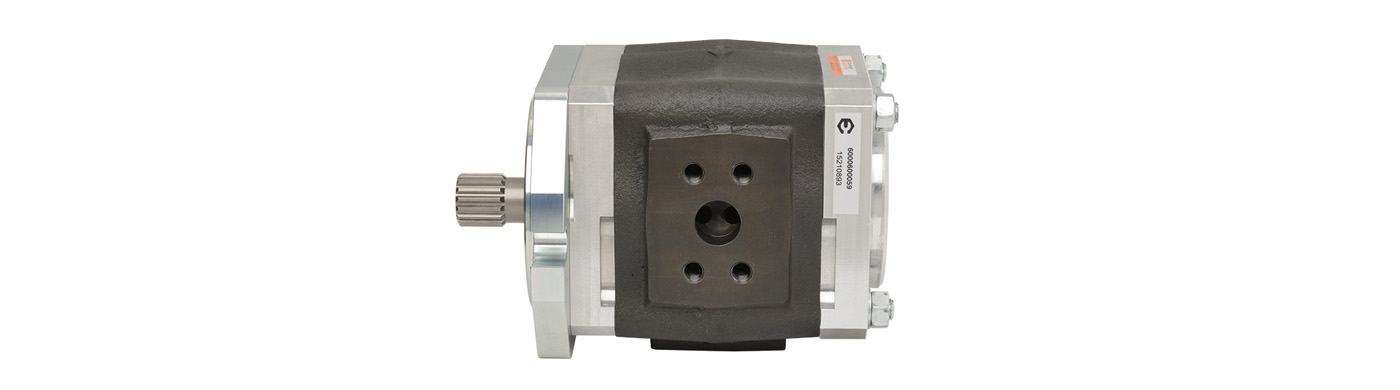

The new EIPH series has been developed especially for the rigorous demands of industrial hydraulics. The pumps in this series feature particularly low-noise operation, excellent efficiencies and a long service life. They can of course easily be combined to create multiple pumps with separate or common intakes. The EIPH is a logical development of the gap-compensated Eckerle internal gear pumps that have been tried and tested in the industry for over 40 years.

Shaft Key

There are three type of shaft keys, they are cylinderal (RK), cylinderal (RA) with SAE B flange and geared (RB)
Pump volume (l/min) at 1,500 rpm 6
Nominal size 4
Vth - specific volume (cm³/rev) 4.1
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4200
Order Number 6000200264
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 7.5
Nominal size 5
Vth - specific volume (cm³/rev) 5.4
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4200
Order Number 6000200220
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 9
Nominal size 6
Vth - specific volume (cm³/rev) 6.4
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4200
Order Number 6000200221
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 12
Nominal size 8
Vth - specific volume (cm³/rev) 7.9
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4200
Order Number 6000200222
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 16.5
Nominal size 11
Vth - specific volume (cm³/rev) 10.9
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200223
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 19.5
Nominal size 13
Vth - specific volume (cm³/rev) 13.3
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200224
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 24
Nominal size 16
Vth - specific volume (cm³/rev) 15.8
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200225
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 28.5
Nominal size 19
Vth - specific volume (cm³/rev) 19.3
Permanent operating pressure (bar) 300
Peak operating pressure (bar) 300
Wave end cylindrical
Max. speed (rpm) 3600
Order Number 6000200226
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 33
Nominal size 22
Vth - specific volume (cm³/rev) 22.2
Permanent operating pressure (bar) 250
Peak operating pressure (bar) 300
Wave end cylindrical
Max. speed (rpm) 3600
Order Number 6000200227
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 37.5
Nominal size 25
Vth - specific volume (cm³/rev) 25.2
Permanent operating pressure (bar) 250
Peak operating pressure (bar) 280
Wave end cylindrical
Max. speed (rpm) 3600
Order Number 6000200228
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 16.5
Nominal size 11
Vth - specific volume (cm³/rev) 10.9
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200247
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 19.5
Nominal size 13
Vth - specific volume (cm³/rev) 13.3
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200248
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 24
Nominal size 16
Vth - specific volume (cm³/rev) 15.8
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000200249
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 96
Nominal size 64
Vth - specific volume (cm³/rev) 64.6
Permanent operating pressure (bar) 280
Peak operating pressure (bar) 300
Wave end cylindrical
Max. speed (rpm) 1800
Order Number 6000300093
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 21
Nominal size 14
Vth - specific volume (cm³/rev) 14.6
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000300065
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 24
Nominal size 16
Vth - specific volume (cm³/rev) 16
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 4000
Order Number 6000300066
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 30
Nominal size 20
Vth - specific volume (cm³/rev) 20
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 3000
Order Number 6000300067
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 37.5
Nominal size 25
Vth - specific volume (cm³/rev) 24.8
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 3000
Order Number 6000300068
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 48
Nominal size 32
Vth - specific volume (cm³/rev) 32.1
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 350
Wave end cylindrical
Max. speed (rpm) 3000
Order Number 6000300069
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 60
Nominal size 40
Vth - specific volume (cm³/rev) 40.1
Permanent operating pressure (bar) 280
Peak operating pressure (bar) 300
Wave end cylindrical
Max. speed (rpm) 2500
Order Number 6000300070
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 75
Nominal size 50
Vth - specific volume (cm³/rev) 50.3
Permanent operating pressure (bar) 280
Peak operating pressure (bar) 300
Wave end cylindrical
Max. speed (rpm) 1800
Order Number 6000300071
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 60
Nominal size 40
Vth - specific volume (cm³/rev) 40.8
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 340
Wave end cylindrical
Max. speed (rpm) 2400
Order Number 6000600000
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 75
Nominal size 50
Vth - specific volume (cm³/rev) 50.6
Permanent operating pressure (bar) 330
Peak operating pressure (bar) 340
Wave end cylindrical
Max. speed (rpm) 2400
Order Number 6000600001
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 96
Nominal size 64
Vth - specific volume (cm³/rev) 65.3
Permanent operating pressure (bar) 315
Peak operating pressure (bar) 330
Wave end cylindrical
Max. speed (rpm) 2400
Order Number 6000600002
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 120
Nominal size 80
Vth - specific volume (cm³/rev) 80
Permanent operating pressure (bar) 300
Peak operating pressure (bar) 330
Wave end cylindrical
Max. speed (rpm) 2200
Order Number 6000600003
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 150
Nominal size 100
Vth - specific volume (cm³/rev) 101.2
Permanent operating pressure (bar) 300
Peak operating pressure (bar) 330
Wave end cylindrical
Max. speed (rpm) 2200
Order Number 6000600004
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 187.5
Nominal size 125
Vth - specific volume (cm³/rev) 125.7
Permanent operating pressure (bar) 250
Peak operating pressure (bar) 280
Wave end cylindrical
Max. speed (rpm) 2200
Order Number 6000600005
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 240
Nominal size 160
Vth - specific volume (cm³/rev) 160.1
Permanent operating pressure (bar) 250
Peak operating pressure (bar) 280
Wave end cylindrical
Max. speed (rpm) 2000
Order Number 6000600006
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 300
Nominal size 200
Vth - specific volume (cm³/rev) 200.9
Permanent operating pressure (bar) 160
Peak operating pressure (bar) 170
Wave end cylindrical
Max. speed (rpm) 2000
Order Number 6000600014
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 375
Nominal size 250
Vth - specific volume (cm³/rev) 249.9
Permanent operating pressure (bar) 140
Peak operating pressure (bar) 150
Wave end cylindrical
Max. speed (rpm) 2000
Order Number 6000600015
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Pump volume (l/min) at 1,500 rpm 240
Nominal size 160
Vth - specific volume (cm³/rev) 160.1
Permanent operating pressure (bar) 250
Peak operating pressure (bar) 280
Wave end geared
Max. speed (rpm) 2000
Order Number 6000600059
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec
Should you are looking for a customized pump, why do give us a call? Let us help you ...
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
