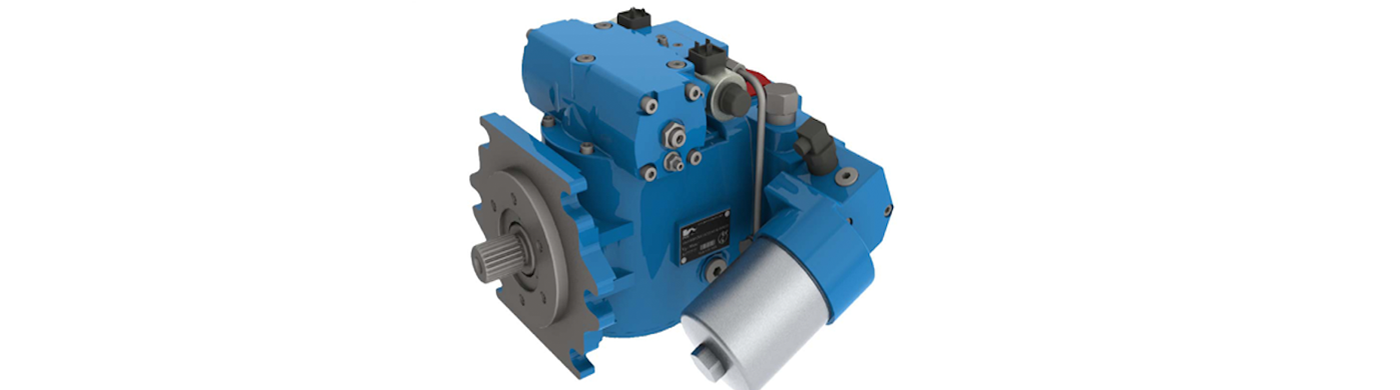

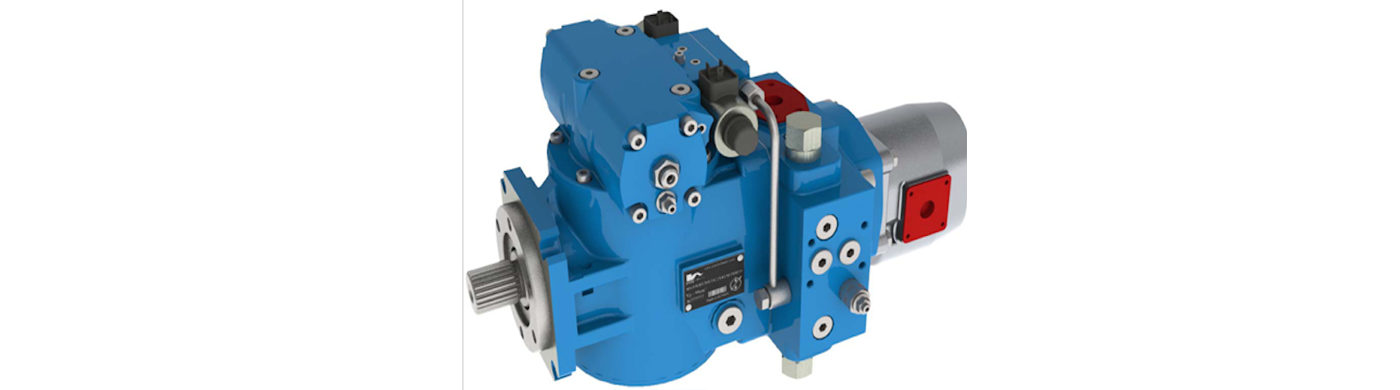

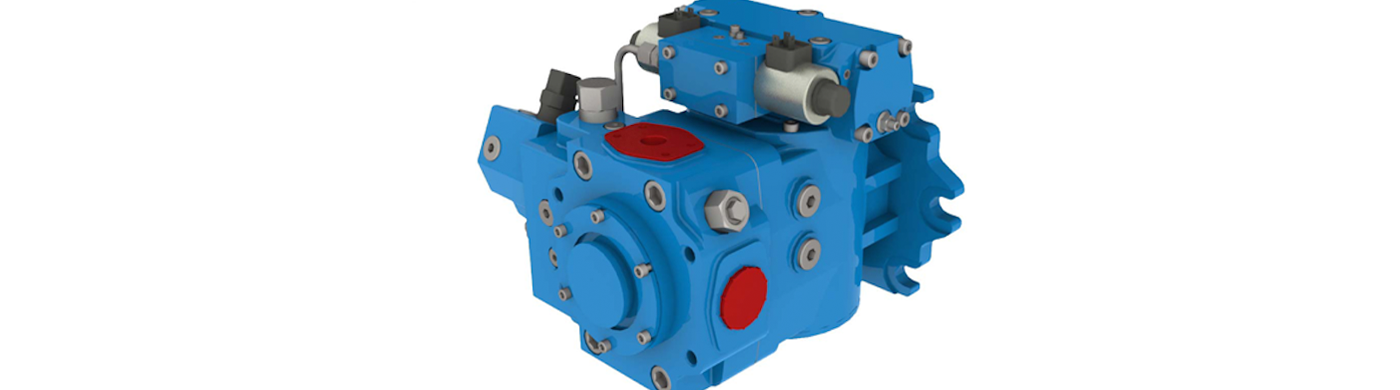

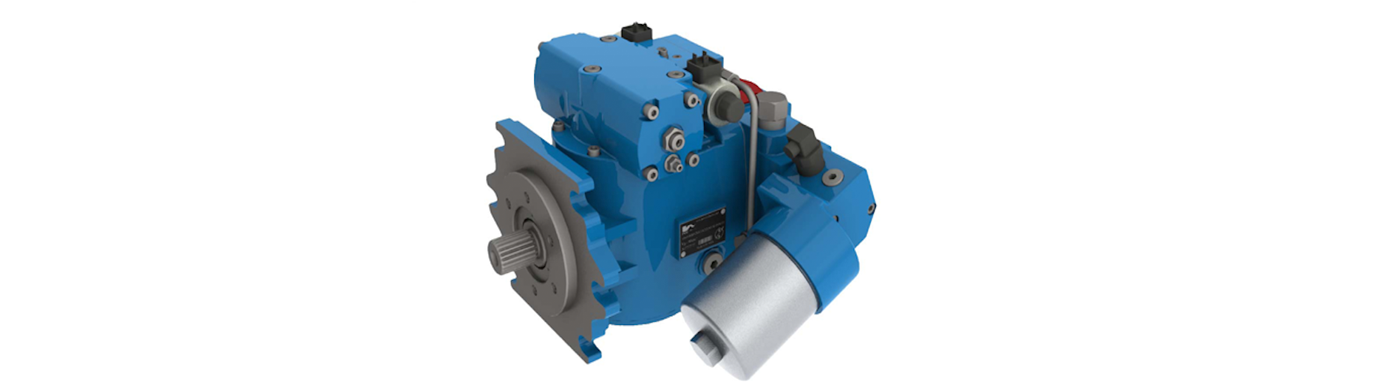

  4. Variable pumps for close circuit 416 Series

Application

  • Concrete mixers
  • Mobile cranes
  • Crawler cranes
  • Wheel excavators
  • Crawler excavators
  • Rollers
  • Skid steer loaders
  • Forklift loaders
  • Bulldozers
  • Pipe layers
  • Harvesters
  • Snow removers
  • Motor graders
  • Asphalt millers
  • Asphalt pavers
  • Drill rigs
  • Forest machine

Description

The pumps transform the shaft rotation mechanical energy into the working fluid energy. Hydraulic pump feed is proportional to the shaft rotation frequency and working displacement. Working displacement value is steplessly regulated from zero up to max value to each side. Fluid feed direction can be reversed by means of swash plate swivel change into the opposite side from the neutral position. 416 series pumps are intended for operation in stationary and mobile installations in set with hydrostatic transmissions (HST).

Working displacement

Working displacement: 28, 71, 90, 110, 125 ccm/rev

Design

variable displacement axial piston swashplate hydraulic pumps
mounting dimensions according to DIN / ISO / SAE standards

Mounted in the pump end cap

booster pump and purge relief valve
two check-safety valves

Types of control

proportional servo-control
electrical proportional (12, 24 V)
open-loop electrical proportional (12, 24 V) without feedback
electrical discrete (12, 24 V)
hydraulic proportional
open-loop hydraulic proportional without feedback

Pumps coupling

8 mounting versions of additional pumps coupling with the base pump are available

Options available on request

filter in the booster pump pressure line, the filter is in set with the pump
cut-off valve
shaft rotation frequency sensor

Analogues

A4VG, A4VTG (Bosch Rexroth)
42R(L), 90R(L), SPV22/23/24 (Sauer Danfoss)
PVH(S) (Hydrosila)

416.0.28

Working displacement (ccm/rev) 0-28
Shaft rotation frequency (rpm)
  • normal:2000
  • max(at input pressure = 0.08 MPa):4250
  • peak npeak, at input pressure= 0.2 MPa:4500
Feed (l/min)
  • normal:2000
  • max:113.05
  • peak:119.70
Boost pressure (difference) ∆P (MPa)
  • normal:25
  • max:40
  • peak:45
Charge pressure (МPa)
  • at Vg=0, nnom:2.7
  • at Vg≠0, nnom2.3
Charge pump input pressure (absolute) (MPa)
  • min working:0.08
  • min short-term (t<5 min) (atidling):0.05
Drain pressure (МPa)
  • max working:0.25
  • max short-term (t<5 min):0.5
Consumed power (kW)
  • normal:25.08
  • max:84.71
  • peak:100.77
Driven torque (Nm)
  • normal:126.61
  • max:200.88
  • peak:225.64
Feed coefficient 0.95
Weight (KG) 29
Contact and Download
Name Eric Chin
Tel: +86 1388 994 5234
+852 3690 8205
Fax: +852 3690 8206
email: ericchin@smoothpower.com.hk
Download Technical Spec

416.0.71

Working displacement (ccm/rev) 0-71
Shaft rotation frequency (rpm)
  • normal:2000
  • max(at input pressure = 0.08 MPa):3050
  • peak npeak, at input pressure= 0.2 MPa:3300
Feed (l/min)
  • normal:134.90
  • max:205.72
  • peak:222.59
Boost pressure (difference) ∆P (MPa)
  • normal:25.00
  • max:40.00
  • peak:45.00
Charge pressure (МPa)
  • at Vg=0, nnom:2.70
  • at Vg≠0, nnom:2.30
Charge pump input pressure (absolute) (MPa)
  • min working:0.08
  • min short-term (t<5 min) (atidling):0.05
Drain pressure (МPa)
  • max working:0.25
  • max short-term (t<5 min):0.50
Consumed power (kW)
  • normal:63.50
  • max:154.10
  • peak:187.30
Driven torque (Nm)
  • normal:320.68
  • max:509.01
  • peak:571.79
Feed coefficient 0.95
Weight (KG) 67.00
Contact and Download
Name Eric Chin
Tel: +86 1388 994 5234
+852 3690 8205
Fax: +852 3690 8206
email: ericchin@smoothpower.com.hk
Download Technical Spec

416.0.90

Working displacement (ccm/rev) 0-90
Shaft rotation frequency (rpm)
  • normal:2000
  • max(at input pressure = 0.08 MPa):3050
  • peak npeak, at input pressure= 0.2 MPa:3300
Feed (l/min)
  • normal:171.00
  • max:260.78
  • peak:282.15
Boost pressure (difference) ∆P (MPa)
  • normal:25.00
  • max:40.00
  • peak:45.00
Charge pressure (МPa)
  • at Vg=0, nnom:2.70
  • at Vg≠0, nnom:2.30
Charge pump input pressure (absolute) (MPa)
  • min working:0.08
  • min short-term (t<5 min) (atidling):0.05
Drain pressure (МPa)
  • max working:0.25
  • max short-term (t<5 min):0.50
Consumed power (kW)
  • normal:80.20
  • max:194.80
  • peak:236.90
Driven torque (Nm)
  • normal:404.68
  • max:643.41
  • peak:722.99
Feed coefficient 0.95
Weight (KG) 67.00
Contact and Download
Name Eric Chin
Tel: +86 1388 994 5234
+852 3690 8205
Fax: +852 3690 8206
email: ericchin@smoothpower.com.hk
Download Technical Spec

416.0.110

Working displacement (ccm/rev) 0-110
Shaft rotation frequency (rpm)
  • normal:2000
  • max(at input pressure = 0.08 MPa):3000
  • peak npeak, at input pressure= 0.2 MPa:3200
Feed (l/min)
  • normal:156.75
  • max:313.50
  • peak:334.40
Boost pressure (difference) ∆P (MPa)
  • normal:25.00
  • max:40.00
  • peak:45.00
Charge pressure (МPa)
  • at Vg=0, nnom:2.70
  • at Vg≠0, nnom:2.30
Charge pump input pressure (absolute) (MPa)
  • min working:0.08
  • min short-term (t<5 min) (atidling):0.05
Drain pressure (МPa)
  • max working:0.25
  • max short-term (t<5 min):0.50
Consumed power (kW)
  • normal:73.60
  • max:234.40
  • peak:281.00
Driven torque (Nm)
  • normal:495.30
  • max:787.09
  • peak:884.35
Feed coefficient 0.95
Weight (KG) 80.00
Contact and Download
Name Eric Chin
Tel: +86 1388 994 5234
+852 3690 8205
Fax: +852 3690 8206
email: ericchin@smoothpower.com.hk
Download Technical Spec

416.0.125

Working displacement (ccm/rev) 0-125
Shaft rotation frequency (rpm)
  • normal:2000
  • max(at input pressure = 0.08 MPa):3000
  • peak npeak, at input pressure= 0.2 MPa:3200
Feed (l/min)
  • normal:178.37
  • max:356.25
  • peak:380.00
Boost pressure (difference) ∆P (MPa)
  • normal:25.00
  • max:40.00
  • peak:45.00
Charge pressure (МPa)
  • at Vg=0, nnom:2.70
  • at Vg≠0, nnom:2.30
Charge pump input pressure (absolute) (MPa)
  • min working:0.08
  • min short-term (t<5 min) (atidling):0.05
Drain pressure (МPa)
  • max working:0.25
  • max short-term (t<5 min):0.50
Consumed power (kW)
  • normal:83.60
  • max:266.10
  • peak:318.90
Driven torque (Nm)
  • normal:561.62
  • max:893.19
  • peak:1003.72
Feed coefficient 0.95
Weight (KG) 80.00
Contact and Download
Name Eric Chin
Tel: +86 1388 994 5234
+852 3690 8205
Fax: +852 3690 8206
email: ericchin@smoothpower.com.hk
Download Technical Spec
