Application

  • Compressors
  • Hydraulic Systems
  • Agricultural Equipment
  • Construction Equipment
  • Heat Pumps
  • Wind Energy
  • HVAC Systems
  • Chemical Industry

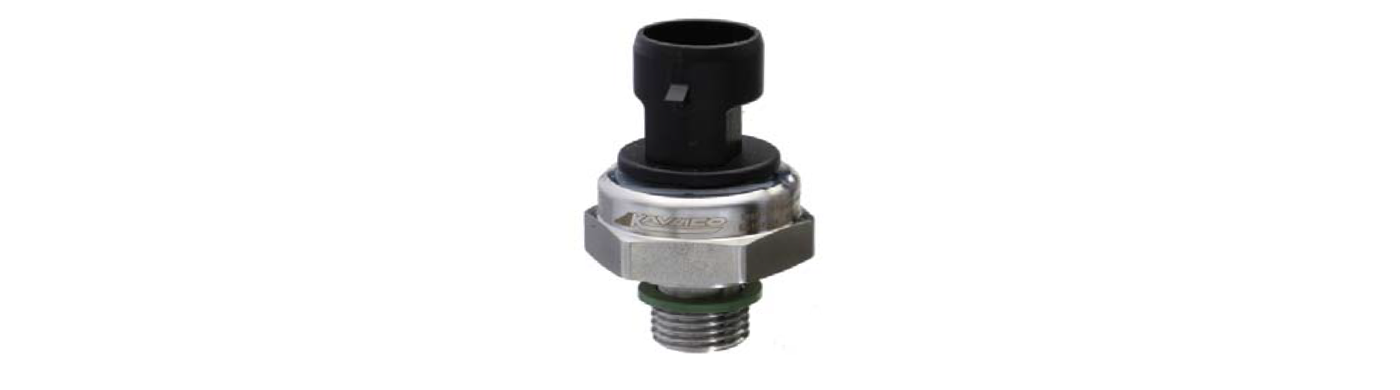

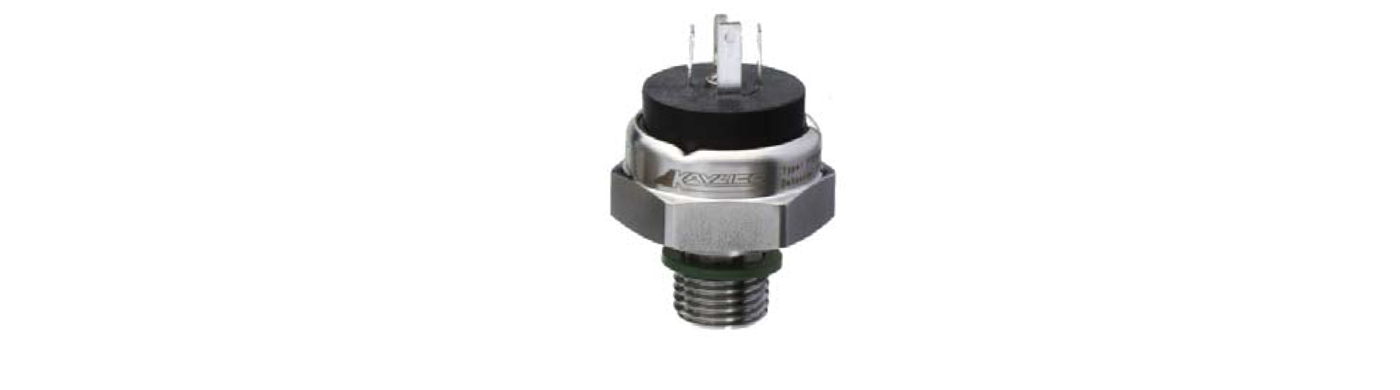

Description

The PTE5000 utilizes Kavlico’s thin film straingauge sensing technology, incorporating a hermetically sealed design with no internal sealing required. Designed for harsh environments, a rugged 304 stainless steelhousing surrounds the PTE5000 transducer. The PTE5000’s small, compact design as well as low overall weight is ideal for applications with spacing and weight limitations. This easy-to-use sensor is media resistant, allowing for a broad range of liquid and gaseous media compatibility. It can be used at high operating temperatures and has internal temperature compensation. Highly reliable, the PTE5000 provides accurate, high pressure measurements every time.
Specifi cally designed for industrial applications, the PTE5000 can be customized to fi t your application-specifi c needs. So contact us to place your custom order now.

Standard Full Scale Pressure Ranges

  • 0-6
  • 0-10
  • 0-16
  • 0-25
  • 0-40
  • 0-60
  • 0-100
  • 0-160
  • 0-250
  • 0-400
  • 0-600

Output Signal

  • 4 – 20 mA
  • 0.5 – 4.5 VDC Ratiometric
  • 0 – 5 VDC
  • 0 – 10 VDC
There are two types, they are PTE5000-5036 and PTE5010-5039 for plastic injection industry.

PTE5000-250-1-D-4-A

Pressure Ranges Bar 250
Output 4 – 20 mA
External O-ring Copper Washer G1/4"
Pressure Connection (port) G1/4"A DIN 3852-A

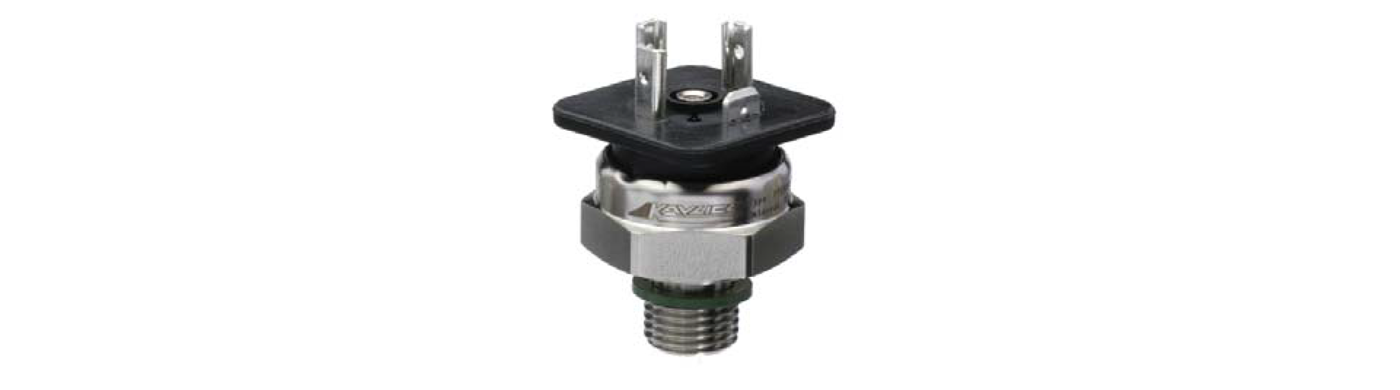

Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5000-250-1-D-4-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5000-400-1-D-4-A

Pressure Ranges Bar 400
Output 4 – 20 mA
External O-ring Copper Washer G1/4"
Pressure Connection (port) G1/4"A DIN 3852-A
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5000-400-1-D-4-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5000-400-1-D-4-C

Pressure Ranges Bar 400
Output 4 – 20 mA
External O-ring Copper Washer G1/4"
Pressure Connection (port) G1/4"A DIN 3852-A

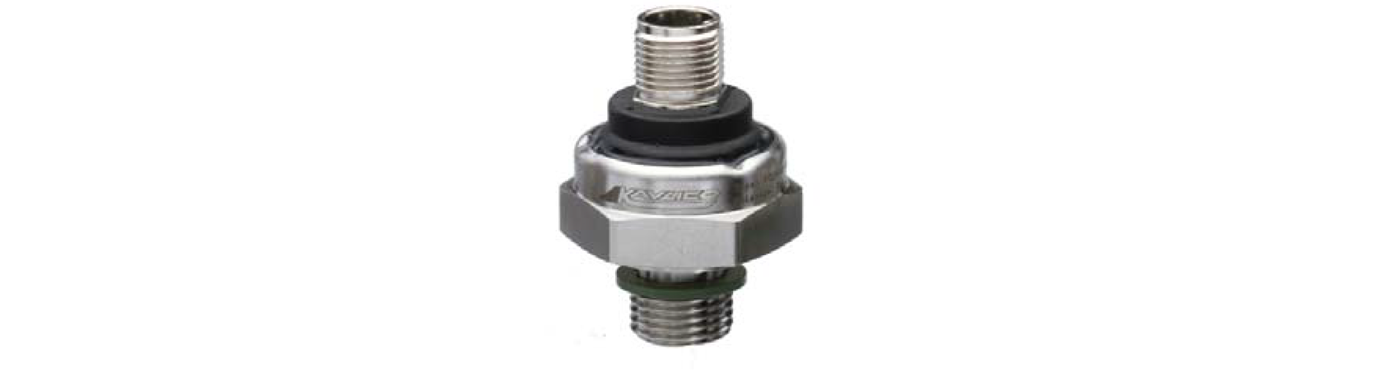

Built-in Electrical Connection M12 - 4 pole
Order Number PTE5000-400-1-D-4-C
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5000-600-1-D-4-A

Pressure Ranges Bar 600
Output 4 – 20 mA
External O-ring Copper Washer G1/4"
Pressure Connection (port) G1/4"A DIN 3852-A
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5000-600-1-D-4-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5010-250-4-A-D-A

Pressure Ranges Bar 250
Output 0 – 10 VDC
External O-ring None
Pressure Connection (port) 1/4-19 PT (1/4-19 BSPT) (R1/4) WITH 0.8 mm DAMPING HOLE
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5010-250-4-A-D-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5010-400-1-D-E-A

Pressure Ranges Bar 400
Output 4 – 20 mA
External O-ring Copper Washer G1/4"
Pressure Connection (port) G1/4A DIN 3852-A G1/4A DIN 3852-A
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5010-400-1-D-E-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5010-400-4-A-D-A

Pressure Ranges Bar 400
Output 0 – 10 VDC
External O-ring None
Pressure Connection (port) 1/4-19 PT (1/4-19 BSPT) (R1/4) WITH 0.8 mm DAMPING HOLE
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5010-400-4-A-D-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5010-600-4-A-C-A

Pressure Ranges Bar 600
Output 0 – 10 VDC
External O-ring None
Pressure Connection (port) 1/4-19 PT (1/4-19 BSPT), (R1/4)
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5010-600-4-A-C-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

PTE5010-600-4-A-D-A

Pressure Ranges Bar 600
Output 0 – 10 VDC
External O-ring None
Pressure Connection (port) 1/4-19 PT (1/4-19 BSPT) (R1/4) WITH 0.8 mm DAMPING HOLE
Built-in Electrical Connection Compatible with DIN 175301-803 A (18 mm)
Order Number PTE5010-600-4-A-D-A
Contact and Download
Name Tony Lau
Tel: +86 139 294 789 31
+852 3690 8205
Fax: +852 3690 8206
email: tonylau@smoothpower.com.hk
Download Technical Spec

Other types

Should you are looking for a customized sensor, why do give us a call? Let us help you ...
